Produkt beskrivelse

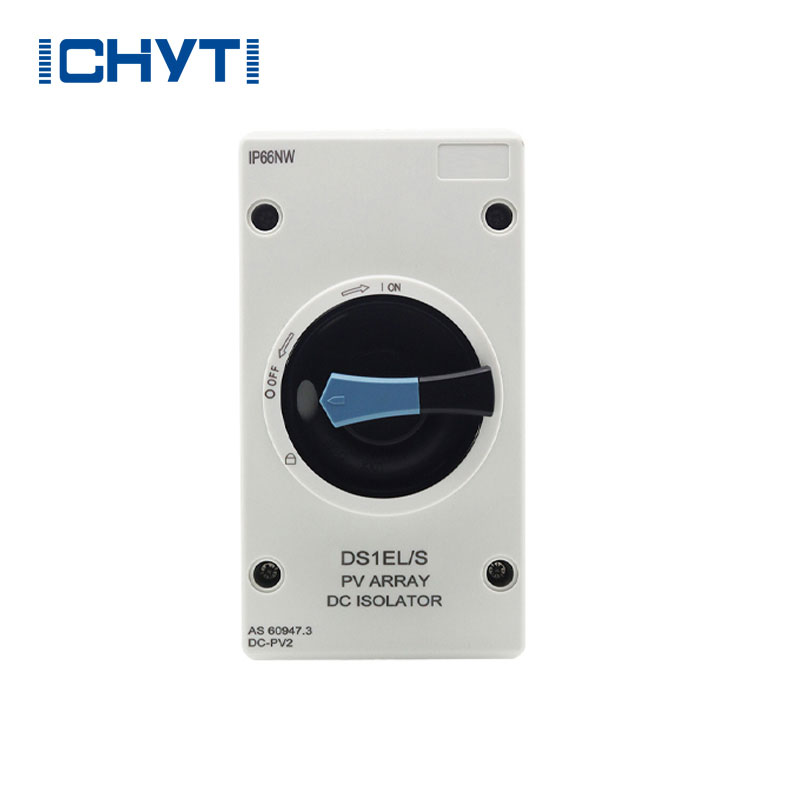

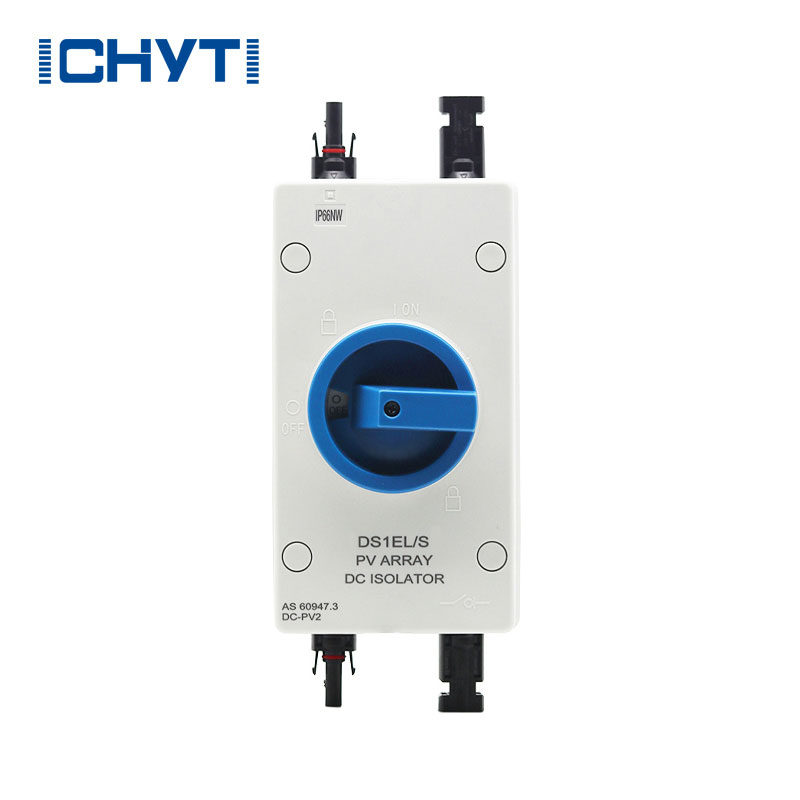

Kinas leverandører ICHYTI Discount vandtæt roterende isolatorafbryder er en lukket isolationsafbryder med en jævnstrømskapacitet på 1000V og 32A, specielt designet til installation af solenergiproduktionssystemer. vandtæt roterende isolatorafbryder er normalt installeret mellem solcellepanelet og inverteren på taget for at isolere solcellepanelet under systeminstallation eller vedligeholdelse. vandtæt drejeisolatorkontakt har en vandtæt klassificering på IP66 og er velegnet til udendørs brug.

ICHYTI vandtæt roterende isolatorkontakt Parameter (specifikation)

Produkt model	DS1EL-S32
Nominel isolationsspænding Ui	1500V
Nominel varmestrøm Ithe	32A
Pol	4P
Nominel impulsmodstandsspænding Uimp	8000V
Nominel korttidsmodstå strøm(ls) lew	1000A
Nominel kortslutningsfremstillingskapacitet Icm	1000A
Arbejdstemperatur	-40âã+ 85°C
Mekanisk liv	10.000 gange
Vandtæt kvalitet	IP66

ICHYTI vandtæt roterende isolatorkontakt Funktion

◉ At vælge en belastningsafbryder, der kan håndtere op til 8 gange mærkestrømmen, er ideel til at isolere motoren.

◉ Switchen har en høj IP66-klassificering.

◉ Dette er en ikke-polariseret DC isolationsafbryder.

◉ Det anbefales kraftigt at sikre, at låget er lukket.

◉ Kontakten er af typen DC-PV1 DC-PV2 DC-21B.

◉ Det store blå håndtag er låsbart.

ICHYTI vandtæt drejeafbryderkontakt Detaljer

◉ IP66 vandtæt: Høj slagstyrke, god sejhed, god forureningsbestandighed.

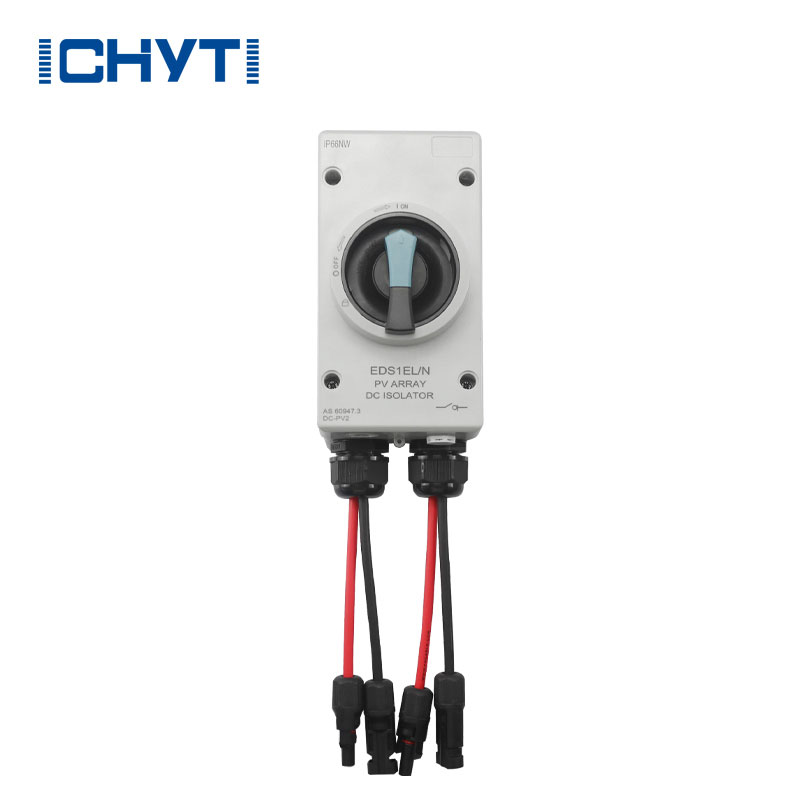

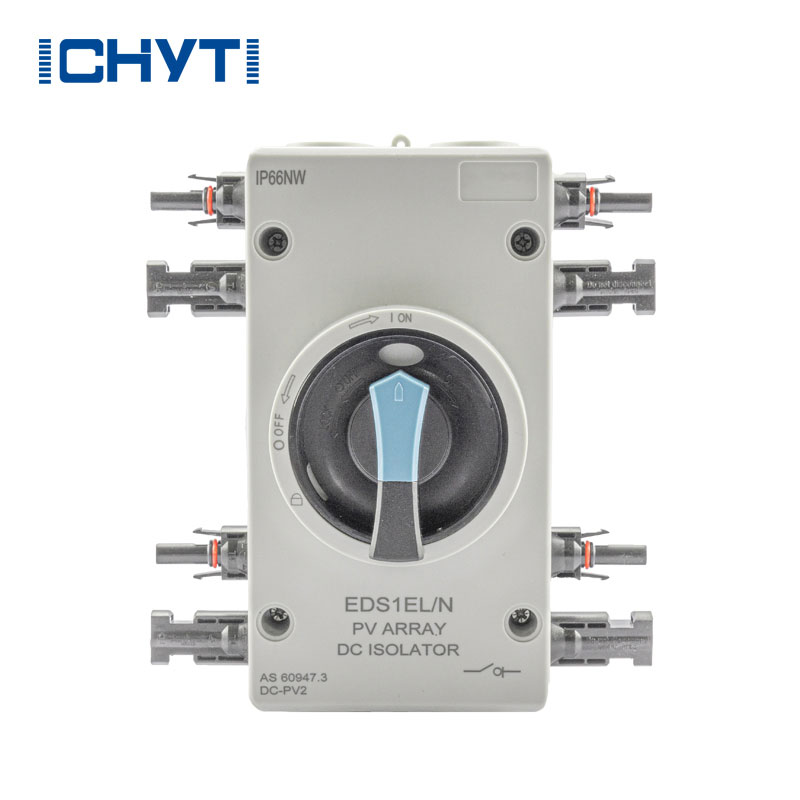

◉ Flere indløbshuller: De fire ender af produktet er henholdsvis forsynet med to knock down huller. som bruges til indgående og udgående linjer efter at være blevet brudt.
